What’s Included

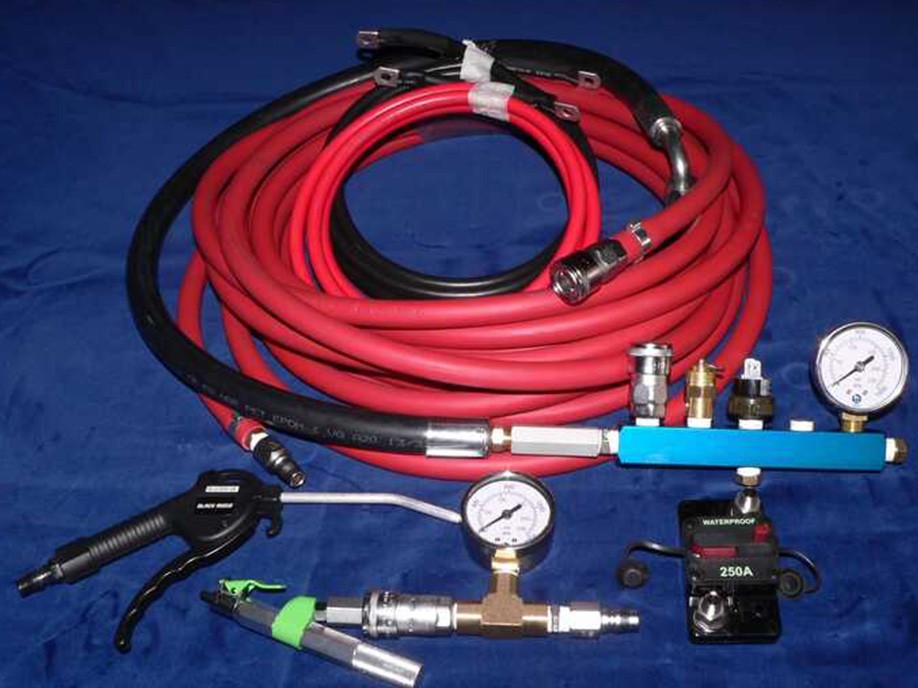

What’s Packed
12 and 24 volt for Receiver and Stand-alone Model
  • Compressor with high quality Briggs and Straton Air Filter and Polyurethane pre-filter sock.
  • 12 volt model = 2 x 2000mm long 35mm square (2AWG / 2B&S ) electric cables with crimped terminals on each end having 8 mm holes.
  • 24 volt model = 2 x 2000mm long 16mm square (4AWG /4B&S ) electric cables with crimped terminals on each end having 8 mm holes.
  • Manual Resetable circuit breaker 250 Amp for 12 volt and 150 Amp for 24 volt.
  • Air hose - 10metre x 10mm internal hole diameter High temperature red rubber hose with genuine “Nitto” Quick connect couplings on each end.
  • High pressure flexible hose with a non-return valve for coupling compressor outlet to receiver with ¼ inch BSP female outlet plus ¼ inch male adapter.
  • 5 port Manifold with holes at each end and one underneath opposite the 5 ports. All ports and holes tapped ¼ BSP parallel thread. 2 threaded plugs and one male /male adapter are supplied so that various configurations can be adapted to a specific situation and directly mounted onto a receiver for convenience if required.
  • One way valve, for inlet side of manifold
  • Pressure switch typically 90-120 psi (630-840 Kpa) on/off range.
  • 150 PSI (1050 Kpa) safety relief valve.
  • High quality air pressure gauge.
  • Nitto style female outlet coupling.
  • Warranty registration sheet.
  • Warranty statement for your records.
  • Customer support -contact details.
  • 1 x Owners Manual plus 2 “serious Air” business cards.
  • 1x quality "Valveless' tire inflator.
  • 1 x pair Australian Std safety glasses.
  • 1 x Blow gun with 2.5 mm hole.
  • 1 x Isolation switch (Toggle switch with rubber booty)
Note 1. Receiver tank not included and in most cases not required.
