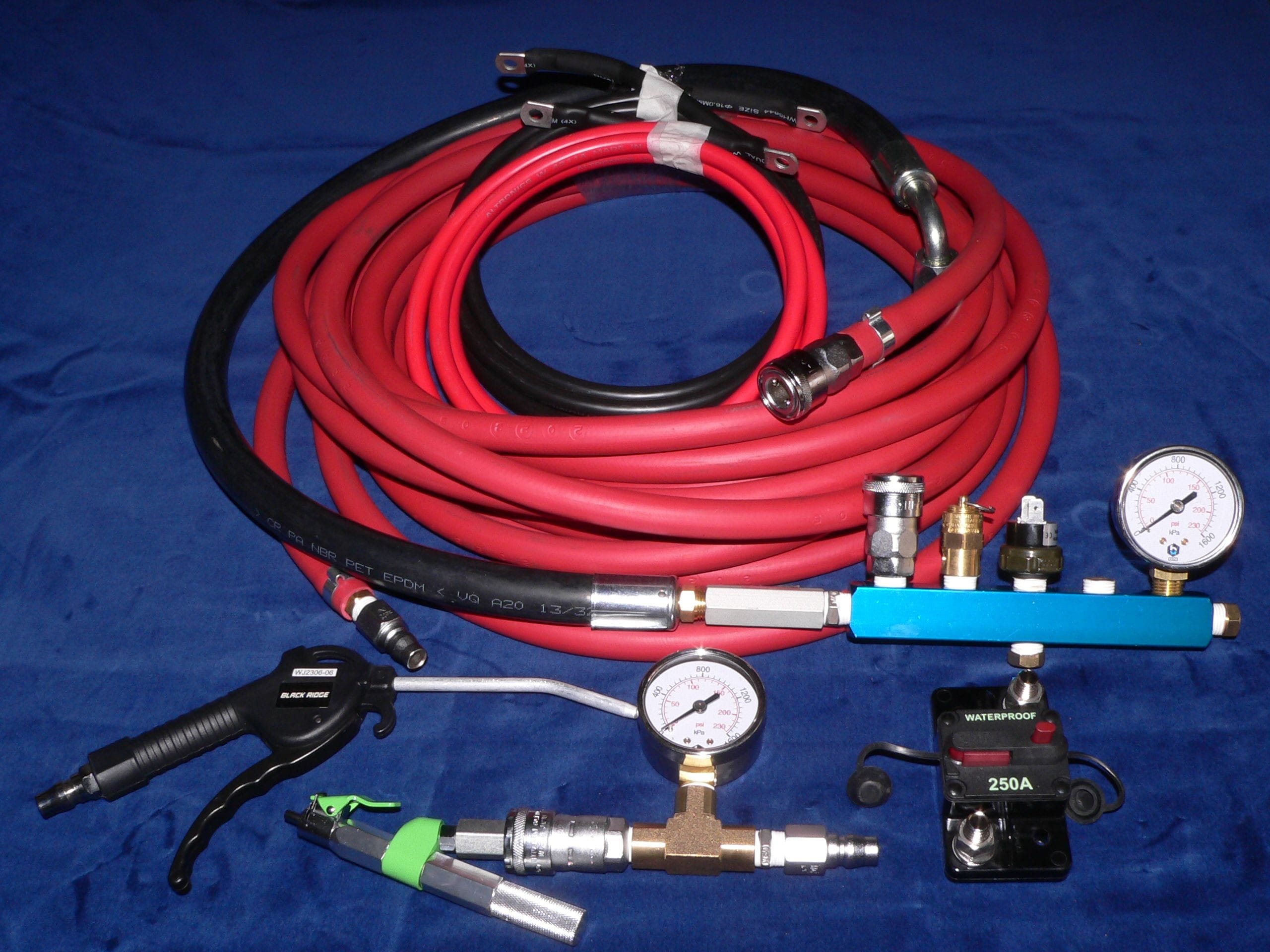

What’s Packed12 and 24 volt for Receiver and Stand-alone Model
Compressor with high quality Briggs and Straton Air Filter and Polyurethane pre-filter sock.12 volt model = 2 x 2000mm  long 35mm square (2AWG  / 2B&S ) electric cables with crimped terminals on each end having 8 mm holes.24 volt model = 2 x 2000mm  long 16mm square (4AWG  /4B&S ) electric cables with crimped terminals on each end having 8 mm holes.Manual Resetable circuit breaker 250 Amp for 12 volt and 150 Amp for 24 volt.Air hose - 10metre x 10mm internal hole diameter High temperature red rubber hose with genuine “Nitto” Quick connect couplings on each end.High pressure flexible hose with a non-return valve for coupling compressor outlet to receiver with  ¼ inch BSP female outlet plus ¼ inch male adapter.5 port Manifold with holes at each end and one underneath opposite the 5 ports. All ports and holes tapped ¼ BSP parallel thread. 2 threaded plugs and one male /male adapter are supplied so that various configurations can be adapted to a specific situation and directly mounted onto a receiver for convenience if required.One way valve, for inlet side of manifoldPressure switch  typically 90-120 psi (630-840 Kpa) on/off range.150 PSI (1050 Kpa) safety relief valve.High quality air pressure gauge.Nitto style female outlet coupling.Warranty registration sheet.Warranty statement for your records.Customer support -contact details.1 x Owners Manual plus 2 “serious Air” business cards.1x quality "Valveless' tire inflator.1 x pair Australian Std safety glasses.1 x Blow gun with 2.5 mm hole.1 x Isolation switch (Toggle switch with rubber booty)Note 1.  Receiver tank not included and in most cases not required.
